Description
ALLROAD AL is built for riders who want one road bike that can do it all, from long climbs and daily commutes to weekend epics. The 7005 aluminium frame is light, fast and tough. Matched with Shimano’s Tiagra 10-speed groupset for smooth and reliable shifting, DT Swiss G 1800 wheels for all-road dependability and grippy Pirelli P7 tyres. Finished with a unisex Selle Italia Model X saddle, it’s a setup built for comfort and built to last.

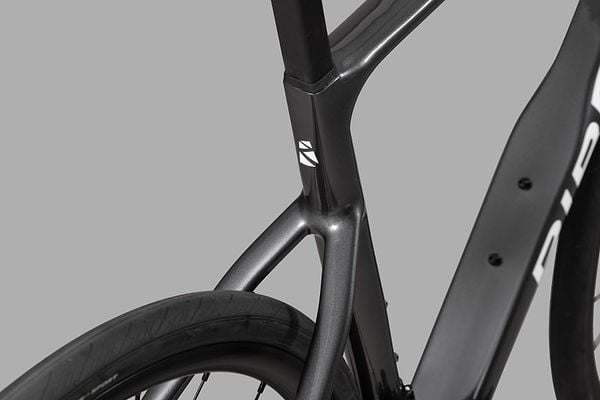

Frameset
Crafted from upgraded 7005-series aluminium, the ALLROAD AL frameset is both lighter and stronger than previous generations, delivering durability without compromise. Hydroformed tubing retains the sleek, aerodynamic profile of our flagship ALLROAD SL R carbon model, offering wind-cheating efficiency in a more accessible platform. Internal cable routing ensures a clean, modern aesthetic and is fully compatible with integrated cockpit systems for next-level integration. A robust T47 bottom bracket enhances drivetrain stiffness while simplifying internal cable routing, giving you responsive handling and smooth power transfer.

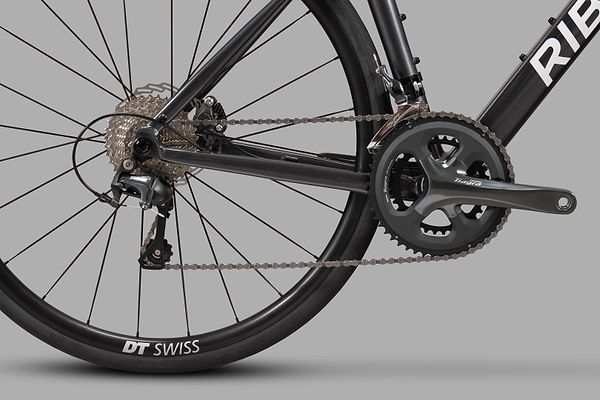

Groupset
Tiagra provides serious entry-level performance with cascaded technology from Shimano’s top-tier lines. The smooth and reliable gear shifts of the Tiagra 2x10-speed groupset provide everyday riders with consistent year-round performance, inspiring you to seek new challenges as your cycling journey progresses. Hydraulic disc brakes instill confidence on fast descents and in wet and slick conditions.

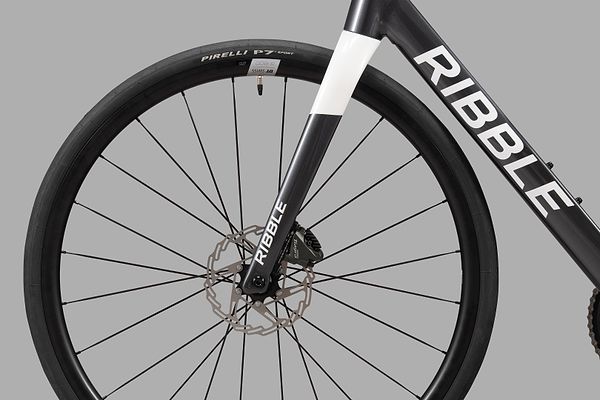

Wheelset
With a wide rim profile and robust construction, the DT Swiss G 1800 Spline alloy wheelset delivers confident handling and ride comfort across everything from unpredictable roads to smooth tarmac. It’s paired with the ultimate all-round training tyre – the Pirelli P7 Sport – for enhanced durability and dependable control in all conditions, making it a top choice for road racers and everyday riders alike.

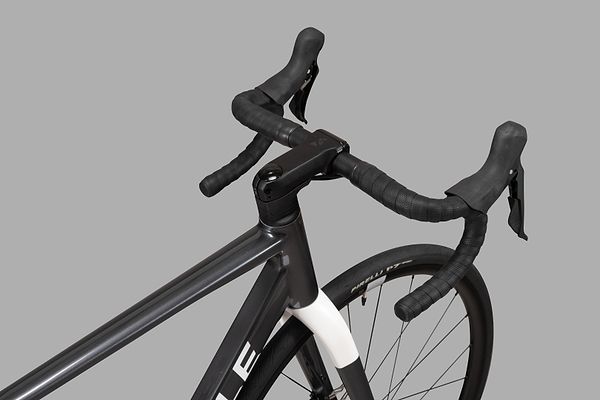

Handlebars
Ribble alloy handlebars are designed with everyday riders in mind, offering a compact shape with a shorter drop and reach for easy, natural transitions between the tops, hoods, and drops. The ergonomic profile helps reduce strain and promotes all-day comfort, letting you find your ideal riding position with minimal adjustment. Paired with a matching alloy stem and wrapped in plush bar tape, they deliver a confident, comfortable feel on every ride, whether it's a quick spin or a full day in the saddle.

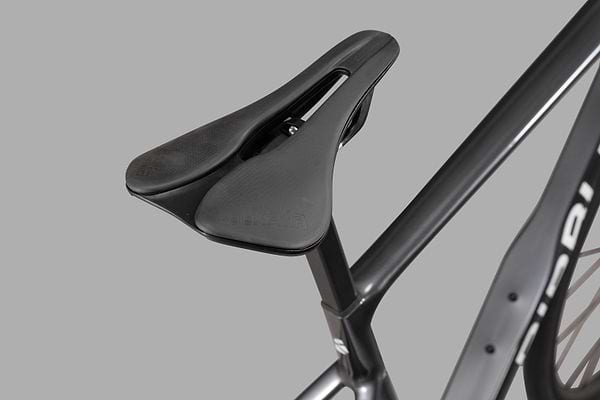

Saddle
The lightweight D-shaped alloy seat post offers the perfect blend of strength and low weight, with a two-bolt design for easy saddle adjustment. It’s paired with the unisex Selle Italia Model X saddle, featuring gel padding, and a Superflow cutout for enhanced comfort on longer rides.
To assist you in selecting the correct size, simply find your height on the graphic. It illustrates our recommendations so you can be confident that the size you order will be correct. If you find that your height is between sizes, we recommend you opt for the smaller size.
For more information on why choosing the right bike size is important, please visit our Bike Sizing page, or learn more about Bike Fitting.
XS
5'3 - 5'6
160 - 168cm
S
5'6 - 5'9
168 - 175cm
M
5'9 - 5'11
175 - 180cm
L
5'11 - 6'1
180 - 185cm
XL
6'1 - 6'4
185 - 193cm
Full Spec
Please note that the exact specification below will differ based on the size and specification you select.
Bike
- Allroad AL Carbon Fork Anthracite
- Allroad AL Frame Anthracite XSM 45cm
- CN-HG54 10spd Chain 116 Links
- CS-HG500 10spd Cassette HG 11-34T
- Centre Lock Rotor Lockring
- Chainstay Protector
- D-Shaped Alloy Seatpost - 350mm
- D-Shaped Rubber Seat Clamp Cover
- Disc Brake Adapter Rear 160mm Flat to Flat
- Disc Brake Hose Parts-Connector Insert Bulk 2.1mm
- Disc Caliper Bolt Black 32mm
- Embossed Black Bar Tape
- FC-R4700 Tiagra 10spd Chainset 165mm 50-34T
- FD-R4700 Tiagra Front Derailleur Braze On
- Front Mech Clamp 34.9mm
- Inline Cable Adjuster 5mm
- Jagwire LEX-SL Gear Cable Outer - Black 1m
- M3 6mm Hex 2 Countersunk Black
- M40417 1.75mm Freehub Spacer
- M5 12mm Hex 4 Tapered Head P0.8 W/Washer Black
- MY24/25 Front Thru Axle
- MY25 Alloy UDH Rear Thru Axle
- MY25 Ti/AL Seatpost Wedge Kit
- Plastic Shift Cable Housing Ferrule 4.2mm
- RD-4700 Tiagra Medium Cage Rear Derailleur
- Rubber Circular Bung - 10mm Domehead 8mm Post
- ST-4720 Tiagra STI Lever & BR-4770 Caliper 10sp RH
- ST-4720 Tiagra STI Lever & BR-4770 Caliper 2X LH
- Short Door - Ti Alloy - Single Hole Without Stop
- T47 85.5mm Shimano 24mm Threaded Bottom Bracket
- Tektro CL Rotor 160mm
- Thru Axle Lever
- Universal Derailleur Hanger
- Warning sticker sheet Torques to be applied at PDI
Wheelset
- G1800 Disc Front Wheel 700c CL
- G1800 Disc Rear Wheel 700c CL HG
- Inner Tube 700x28/35 SV40mm
- P7 Sport Tyre Black 700x32mm
Handlebar
- Expander For Carb Steerer 1-1/8 x 65mm (Regular)
- Level Alloy Handlebar
- Plastic Compression Spider 42mm 0.0mm Offset
- R457B Headset Bearing
- RS-2 Round Headset Bearing Cover for AL
- RS-2 Stem Headset Bearing Cover Kit
Saddle
- Model X Superflow Saddle
