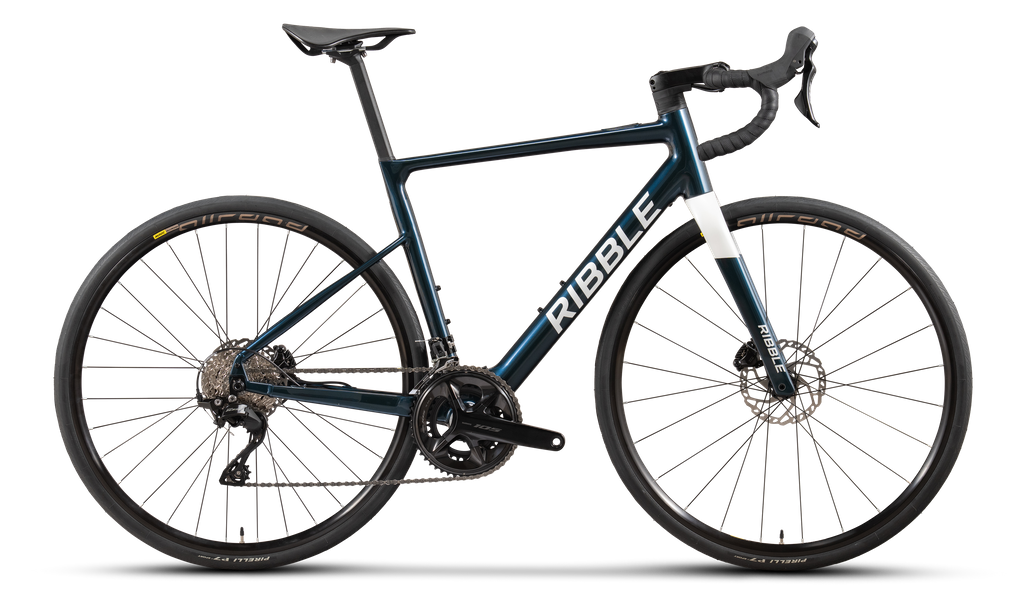

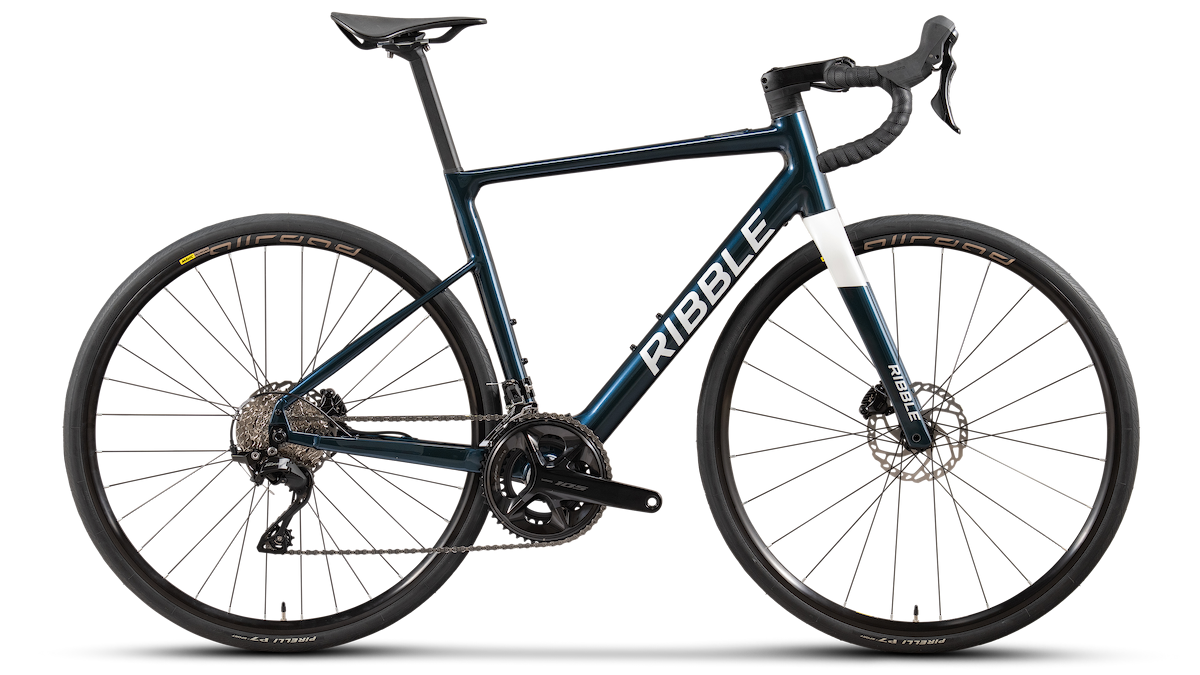

Allroad E AL 105

  1. £3,099
Wherever the road takes you, the Allroad E AL is ready. From busy city streets to sweeping coastal loops and rolling countryside climbs, this versatile aluminium e-road bike is built to handle it all. With stealthy power assist and all-day comfort, the Allroad E AL lets you ride farther, climb more easily, and explore further. Weighing just 13.7 kg, it pairs our lightweight 7005 alloy frame with the intuitive and fully integrated MAHLE X30 e-drive system, the premium precision of Shimano’s 105 12-speed mechanical groupset, durable Mavic Allroad wheels, grippy Pirelli P7 Sport tyres and a unisex Selle Italia Model X saddle.
Choose Your Size
Product code: BALLRALE7100D

...And Many Ways To Pay...

Description

Wherever the road takes you, the Allroad E AL is ready. From busy city streets to sweeping coastal loops and rolling countryside climbs, this versatile aluminium e-road bike is built to handle it all. With stealthy power assist and all-day comfort, the Allroad E AL lets you ride farther, climb more easily, and explore further. Weighing just 13.7 kg, it pairs our lightweight 7005 alloy frame with the subtle and intuitive MAHLE X30 e-drive system, the premium precision of Shimano’s 105 12-speed mechanical groupset, durable Mavic Allroad wheels, grippy Pirelli P7 Sport tyres and a unisex Selle Italia Model X saddle.

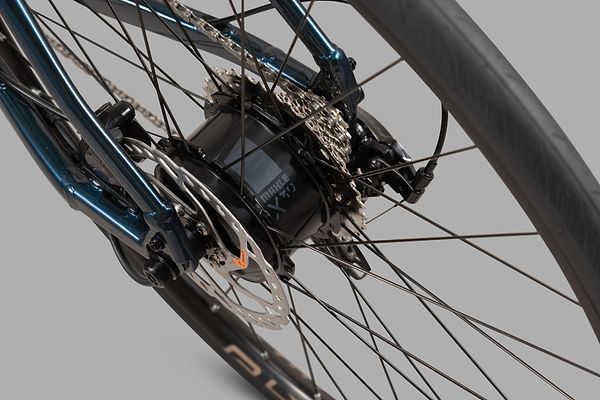

Electric Motor System

The Mahle X30 e-drive system delivers just the right level of assistance - light, quiet, and so seamlessly integrated, it fades into the background. Designed for mixed-terrain exploration, it offers a natural ride feel, an impressive range of 90km off one charge, and low-maintenance performance. With a lighter weight and over-the-air software updates, it’s as easy to live with as it is to ride.

Electric Motor System

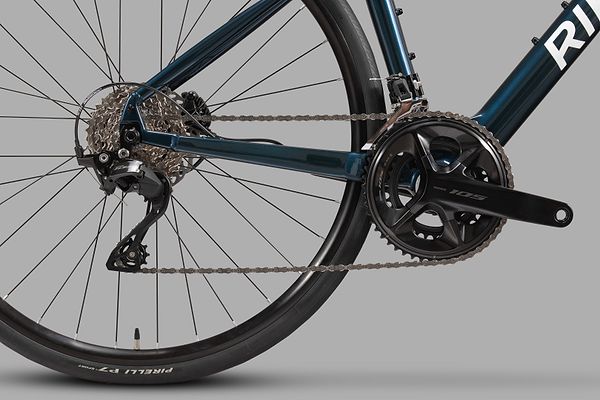

Groupset

Shimano’s first and only 12-speed mechanical groupset is the latest addition to their premium road family. 105 7100 combines pure cycling with pure craftmanship. Inspired by 105 Di2, this versatile drivetrain delivers the wide gear range, hand-friendly ergonomics, and all-condition braking confidence you’ve always craved. Developed from Shimano’s Science of Speed philosophy, 105 raises accessible performance to a whole new level.

Groupset

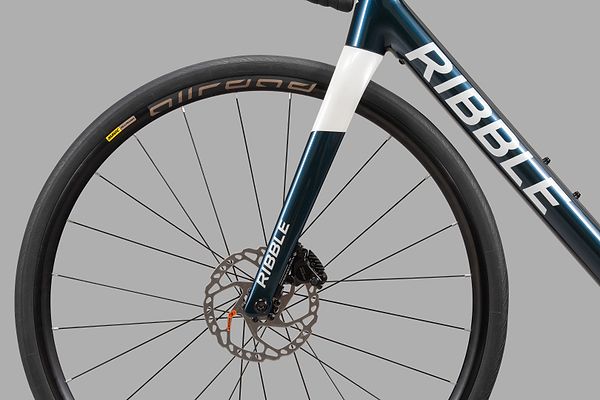

Wheelset

Designed to ride smoother and faster on dirt, gravel, and road, you can ride it all with confident control with the lightweight, durable, and responsive Mavic Allroad wheels with integrated MAHLE X30 motor. Paired with the ultimate all-round training tyre, the Pirelli P7 Sport offers improved durability and confident all-condition control for both road racers and everyday riders.

Wheelset

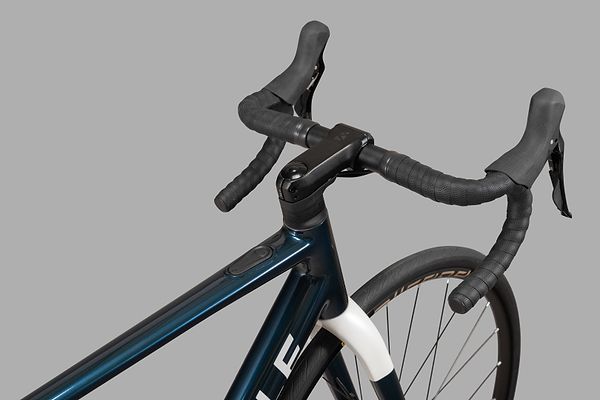

Handlebars

Ribble alloy handlebars are designed with everyday riders in mind, offering a compact shape with a shorter drop and reach for easy, natural transitions between the tops, hoods, and drops. The ergonomic profile helps reduce strain and promotes all-day comfort, letting you find your ideal riding position with minimal adjustment. Paired with a matching alloy stem and wrapped in plush bar tape, they deliver a confident, comfortable feel on every ride, whether it's a quick spin or a full day in the saddle.

Handlebars

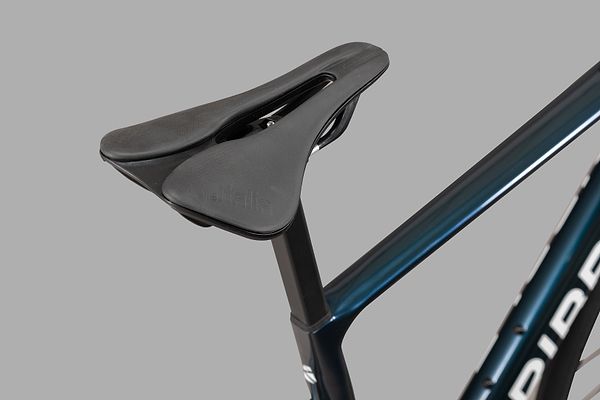

Saddle

The lightweight D-shaped alloy seat post offers the perfect blend of strength and low weight, with a two-bolt design for easy saddle adjustment. It’s paired with the unisex Selle Italia Model X saddle, featuring gel padding, and a Superflow cutout for enhanced comfort on longer rides.

Saddle

Size

To assist you in selecting the correct size, simply find your height on the graphic. It illustrates our recommendations so you can be confident that the size you order will be correct. If you find that your height is between sizes, we recommend you opt for the smaller size.

For more information on why choosing the right bike size is important, please visit our Bike Sizing page, or learn more about Bike Fitting.

Size

Geometry

SizeXSSMMDLGXL
Rider Height5'3 -5'5 (160 - 168cm)5'6 - 5'9 (168 - 175cm)5'9 - 5'11 (175 - 180cm)5'11 - 6'1 (180 - 185cm)6'1 - 6'4 (185 - 193cm)
Crank Length (mm)165170170172.5172.5
A - Seat Angle75°74.5°73.5°73.5°73.5°
B - Top Tube C/C (Horizontal)505525545565585
C - Head Angle71°72°73°73°73°
D - Fork Rake (mm)4545454545
E - Head Tube (mm)120140160180200
F - BB Drop (mm)6969696969
G - Seat Tube C/Top (mm)450480500520540
RC - Rear Centre (mm)415415415415415
FC - Front Centre (mm)573580581601621
Reach (mm)365374377391405
Stack (mm)523546568588607
WB- Wheelbase (mm)97898598610061027
Handlebar Default (mm)380400400420420
Stem Default (mm)8090100100110

Frequently Asked Questions

If you're between sizes, we generally recommend choosing the smaller option. It's easier to fine-tune the fit of a smaller frame by raising the seat post or using a longer stem, whereas a larger frame leaves much less room for adjustment.

Complete build weights, based on a medium size, are Tiagra (14.1 kg) and 105 (13.7 kg)

Frame only weight is 1900 g based on a medium size.

Like all Ribble bikes, the Allroad E AL is covered by a lifetime warranty on frame and forks for the original purchaser. This includes any manufacturing defects in materials or workmanship. The standard manufacturer's warranty applies to all other components.

Range for the Allroad E AL depends on rider weight, terrain, tyre pressures, and temperature. Typically, a 90 kg rider on mixed routes can expect up to 90 km, with an optional eX1 range extender increasing this by up to 60 km.

Yes. The Allroad E AL is a pedal-assisted e-bike and always requires rider input. If you stop pedalling, it will coast to a stop like a conventional bike.

Yes. The Allroad E AL's motor only provides pedal assistance and does not take control. You remain fully in charge of the bike at all times.

No. Pedal-assisted electric bikes neither require you to hold a valid driver’s licence nor pay any road tax or take out insurance. However, having some form of insurance on all bikes is always good practice.

Yes, the Allroad E AL is eligible for Cycle to Work.

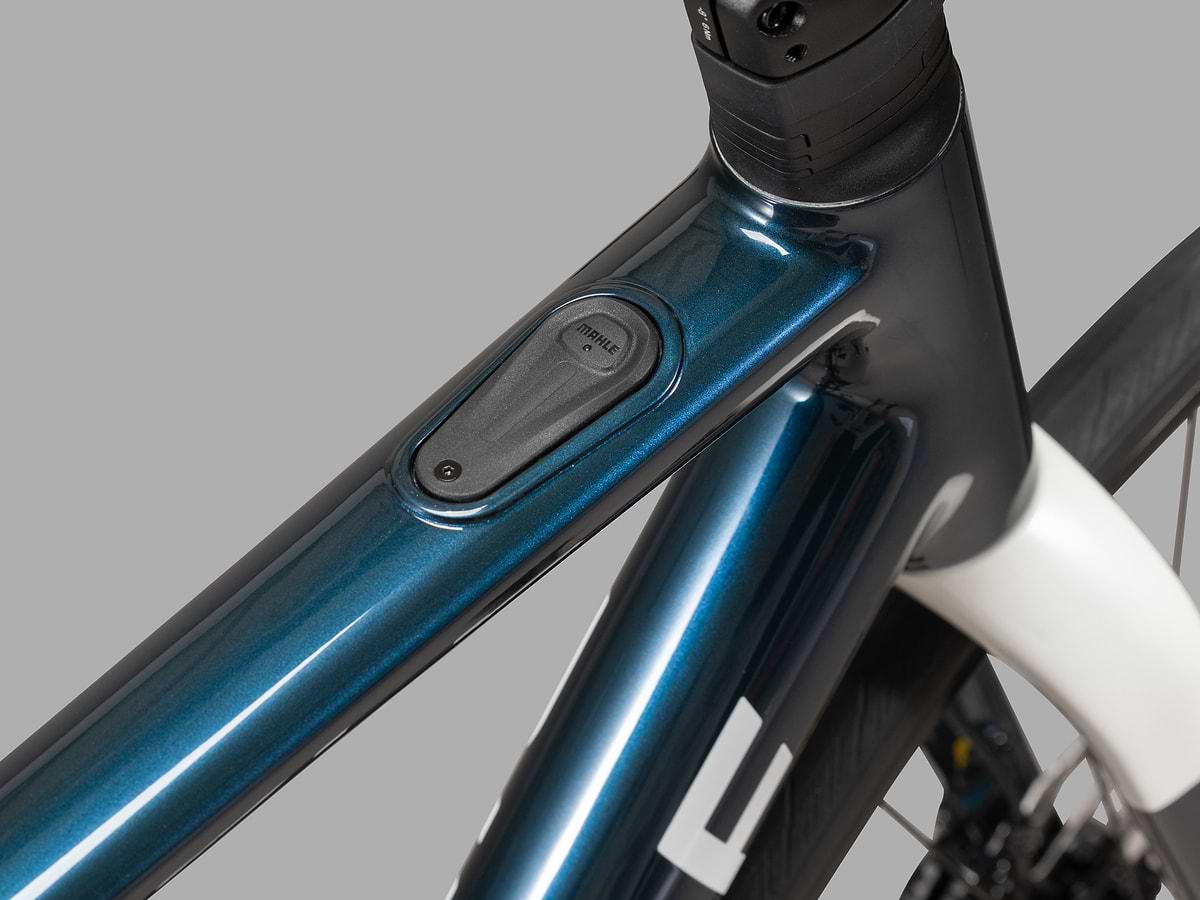

Press the main control button to cycle through assistance levels on the Allroad E AL. LED colours show the level: White (zero), Green (minimum), Orange (medium), Purple (maximum), Cyan (smart assist via app).

The Allroad E AL’s X30 control unit shows battery charge with seven LEDs. Fully lit means 94–100%, gradually decreasing to slow blinking at 0–10%, and fast blinking warns of critically low charge.

Simply plug the Allroad E AL’s battery into a household socket using the supplied charger. An optional range extender can charge the battery if no socket is nearby.

Yes, you can test ride the Allroad E AL at our Clitheroe showroom or during UK demo events. Contact the showroom in advance to reserve your test bike.

Yes. The Allroad E AL’s electrical components are IP54 rated for splash protection but should not be jet washed or fully immersed. Use a waterproof cover when transporting in wet conditions.

Yes. A MAHLE-certified technician can remove the battery by taking off the press-fit bottom bracket via the bottom bracket shell.

The MAHLE iX2 battery on the Allroad E AL is designed for around 500 charge cycles with minimal performance loss when maintained correctly.

Yes. The Allroad E AL features integrated cable routing for a clean look and protection from the elements.

The Allroad E AL is equipped with 32mm road-specific tyres but can accommodate tyres up to 35mm wide, including when mudguards are fitted.

Yes, our removable pannier rack adaptor kit makes it easy to attach a rear pannier, providing a practical solution for carrying your gear (rack adaptor kit sold separately).

A removable bridge on the Allroad E AL allows easy fitting of mudguards to improve wet weather protection (mudguard bridge sold separately).

The frame accepts a PF46 press-fit bottom bracket with an integrated torque sensor.

The Allroad E AL features as 1.5” integrated headset and R457B 52 x 42 x 7mm 45° x 45° headset bearings top and bottom.

The Allroad E AL comes with a proprietary 350 mm D-shaped alloy seat post featuring a 10 mm setback, compatible with carbon and alloy saddle rails.

Two mounts, located on the downtube and seat tube, are specifically designed for Ribble Aero bottle cages to maximise aerodynamic efficiency.

The Allroad E AL uses a 12 mm x 123 mm x 1.5 mm front thru-axle and a bolt-on rear axle for secure wheel attachment.

It features a proprietary derailleur hanger designed specifically for the MAHLE e-system, ensuring perfect alignment.

The maximum recommended system weight for the Allroad E AL is 120 kg, including bike, rider, and luggage.

No pedals are included with the Allroad E AL, allowing you to choose the best pedals for your riding style during bike configuration.
