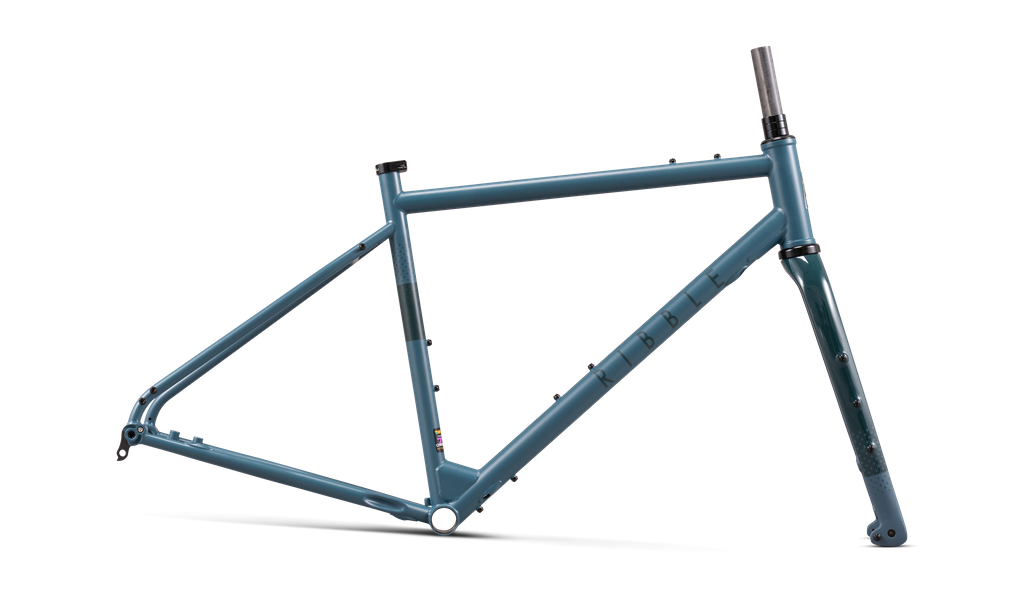

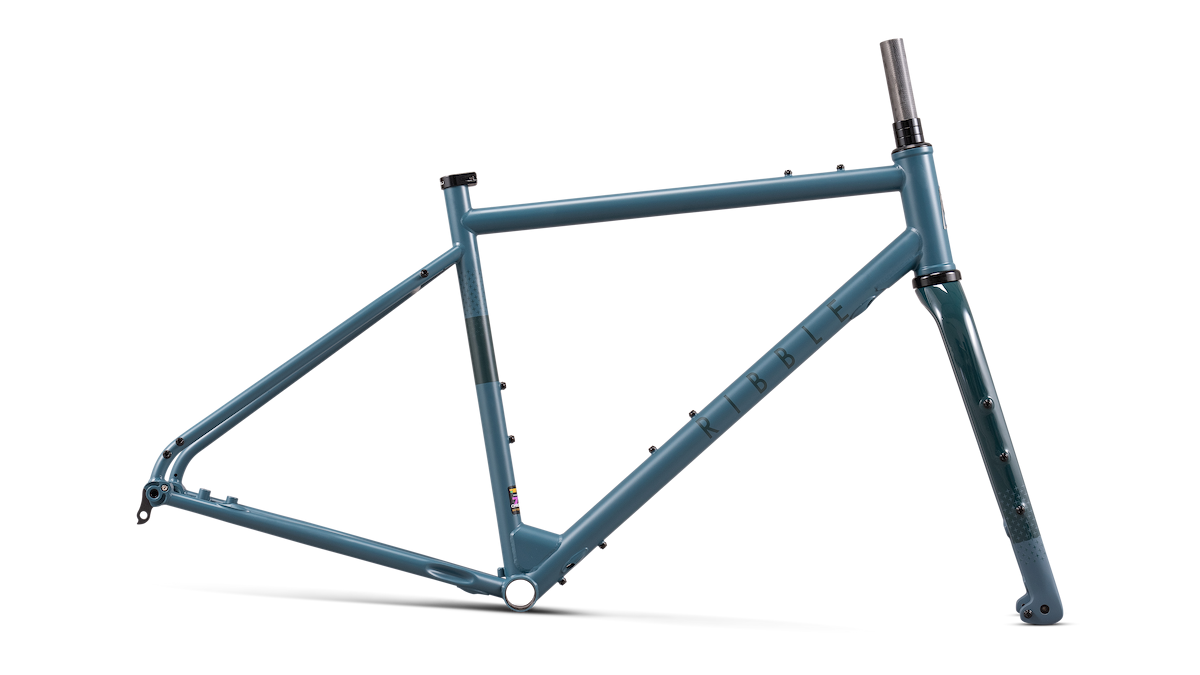

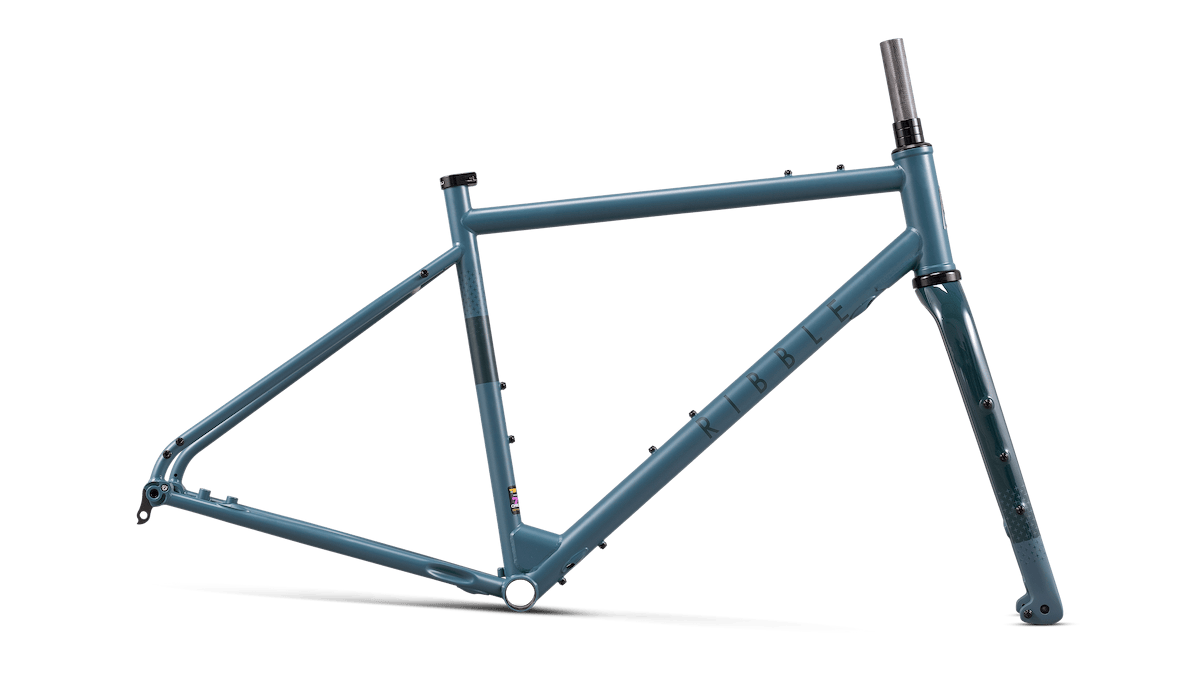

Gravel 725 Frameset
Ways to pay
Why Ribble?
BUILT TO ORDER
Every Ribble is built to order by our skilled mechanics in Lancashire, UK.
LIFETIME FRAME WARRANTY
Ride hard, worry free – all our bikes have a lifetime frame and fork warranty.
30-DAY RIDE-OUT GUARANTEE
Make sure you get the perfect fit - if you're not 100% happy, return it for a full refund or swap. Terms and conditions.
30 DAYS FREE BIKE INSURANCE
Every new Ribble comes with 30 days cover included, so you’re protected from day one.
BUY DIRECT
Get more bike for your money, and have our expert team on hand if you need support.
Description
Blending classic resilience with modern performance, the adventure-ready Gravel 725 harnesses the legendary ride quality of Reynolds steel with a sleek, contemporary edge. Now available as a frameset, it’s your blank canvas to build the ultimate gravel machine— tailored to your style, your terrain, and your vision.

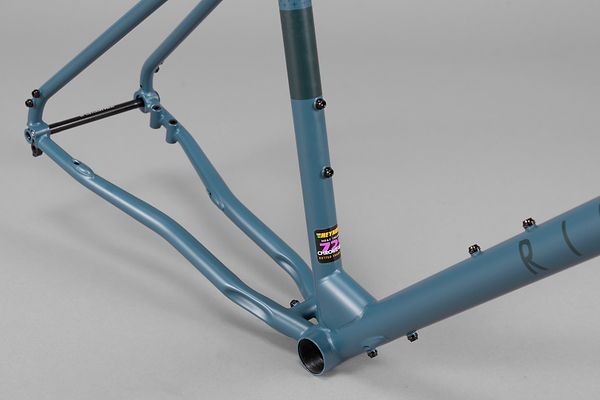

Construction
Handcrafted from Reynolds 725 triple-butted steel tubing, the Gravel 725 combines reassuring strength, resilience, and that signature steel ride feel. Engineered for adventure if offers a spirited yet smooth experience across diverse terrain. Precision seamless weld technology enhances durability while maintaining a sleek, streamlined aesthetic-built to go the distance in style.
Geometry
Our most advanced geometry yet pairs a longer reach with a slacker head tube and extended fork offset for the ultimate off-road experience. This optimised design boosts confidence across diverse gravel terrains, delivering a lively, responsive feel on fast stretches while enhancing stability and control on high-speed descents and flowing singletrack.

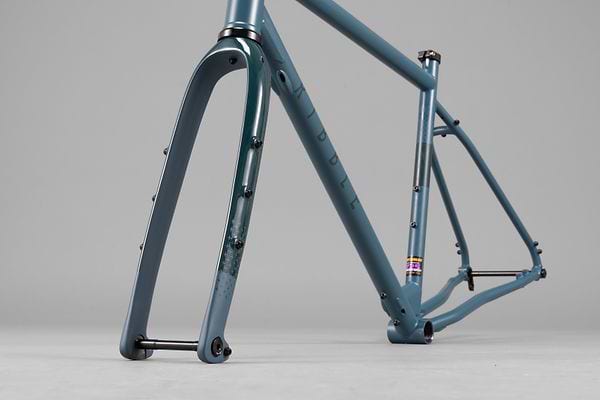

Versatility
Pack light or for extended trips, with additional mounts for water bottles and tools, as well as frame and fork mounts for everything any adventure calls for.

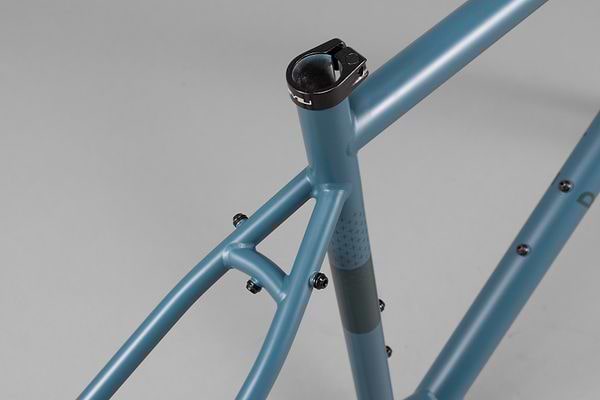

Tyre Clearance
Go wide or narrow, you decide. With 45 mm tyres supplied as standard, you can conquer the most extreme roads and trails while enjoying a more engaging and comfortable ride.
Specifications
- Frame: Gravel 725 Triple-Butted Reynolds 725 Steel
- Forks: Gravel 725 Full Carbon Tapered with Fork Mounts
- Headset: LEVEL 44 with Top Cap & Bolt (included)
- Bottom Bracket: Threaded 68mm BSA
- Front Derailleur Fitting: N/A (1x only)
- Max. Tyre Clearance: 700c x 45 mm or 650b x 47 mm
- Front Axle: 12 x 100 mm (included)
- Rear Axle: 12 x 142 mm (included)
- Weight: Frame - 2530 g; Forks - 490 g (size medium)
* Dependent upon tyre tread profile
Size & Geometry
To assist you in selecting the correct size, simply find your height on the graphic. It illustrates our recommendations so you can be confident that the size you order will be correct. If you find that your height is between sizes, we recommend you opt for the smaller size.
For more information on why choosing the right bike size is important, please visit our Bike Sizing page, or learn more about Bike Fitting.
XXS
4'11 - 5'3
150 - 160cm
XS
5'3 - 5'6
160 - 168cm
S
5'6 - 5'8
168 - 173cm
M
5'8 - 5'10
173 - 178cm
L
5'10 - 6'0
178 - 183cm
XL
6'0 - 6'3
183 - 191cm
Full Spec
Please note that the exact specification below will differ based on the size and specification you select.
Bike
- Alloy Headset Spacer Black 10mm
- Alloy Seat Clamp - 30.0mm
- Carbon Fork Front Thru Axle - 120mm
- Chainstay Protector
- Expander For Carb Steerer 1-1/8 x 65mm (Regular)
- Gravel / HT 725 Rear Mech Hanger
- Gravel 725 Fork
- Gravel 725 Frame Matte Air Force Blue XXS 44cm
- Gravel 725 Frameset Manual
- Head Badge Chrome
- Level 44 Headset
- M4 14mm Hex 3 Cap Head P0.7 SSA2
- M5 12mm Hex 4 Tapered Head P0.8 W/Washer Black
- M5 20mm Hex 4 Tapered Head P0.8 W/Washer Black
- Rubber Blanking Cap CGR Dynamo Fork 7mm
- Steel Rear Thru Axle
