Description

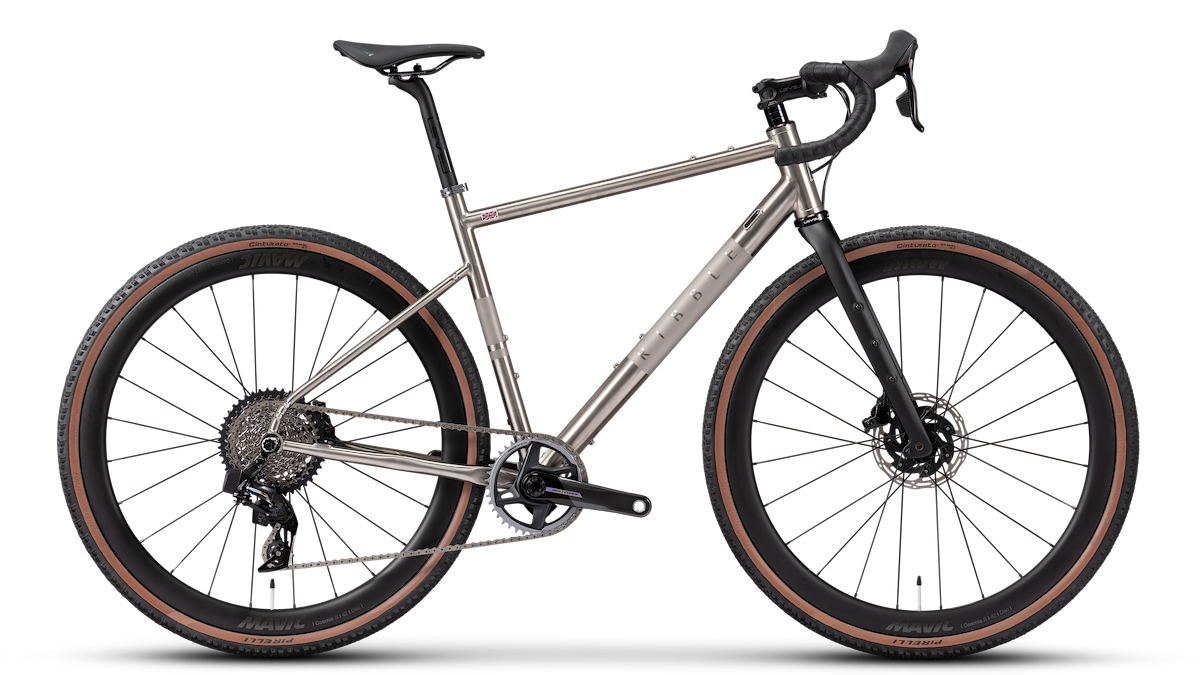

The Gravel Ti is a supremely capable gravel bike that blends timeless titanium ride quality with modern performance, built to stay smooth, strong and composed when the terrain gets tough. It pairs SRAM Force XPLR AXS wireless electronic shifting with versatile Mavic Cosmic S 42 carbon wheels, chunky 40 mm Pirelli Gravel RC tyres and a supportive Selle Italia Novus Boost saddle, creating a refined gravel machine ready for fast miles and demanding routes.
Groupset
Force XPLR AXS continues to push the boundaries of what's possible with electronic shifting. It changes the equation for terrains with ever changing variables. Entirely cable free, it offers an ultra-wide gear range to go after any challenge and closer progression for a more fluid shifting experience. Smooth, accurate shifting, easy personalisation and the superior braking power and modulation of hydraulic disc brakes provide many hours of trouble-free riding pleasure.
Wheelset
Mavic Cosmic S 42 carbon wheels are engineered for riders seeking the perfect balance between weight, aerodynamics, and speed. Their minimal drag and low inertia design allow you to accelerate and climb faster while holding higher speeds for longer - paired with a 40 mm Pirelli Cinturato Gravel RC tyre, designed to compete at some of the world’s most prestigious gravel races. Featuring a fast rolling running surface and improved lateral grip for cornering off-road, this tyre performs at the highest level.
Handlebars
LEVEL Gravel Riser handlebars have been developed specifically for gravel riding; a 20mm rise offers multiple hand positions and more space on the bars when running a barbag. Flared drops provide a wider, more stable stance for improved handling and control when descending and navigating technical terrain. Wrapped in a comfortable LEVEL bar tape and neatly matched with a LEVEL alloy handlebar stem.
Saddle
A superlight LEVEL all-carbon seat post paired with a lightweight, supportive, and comfortable Selle Italia Novus Boost Evo saddle improves pedalling ergonomics, manoeuvrability, and performance.
To assist you in selecting the correct size, simply find your height on the graphic. It illustrates our recommendations so you can be confident that the size you order will be correct. If you find that your height is between sizes, we recommend you opt for the smaller size.
For more information on why choosing the right bike size is important, please visit our Bike Sizing page, or learn more about Bike Fitting.
XXS
4'11 - 5'3
150 - 160cm
XS
5'3 - 5'6
160 - 168cm
S
5'6 - 5'8
168 - 173cm
M
5'8 - 5'10
173 - 178cm
L
5'10 - 6'0
178 - 183cm
XL
6'0 - 6'3
183 - 191cm
Full Spec
Please note that the exact specification below will differ based on the size and specification you select.
Bike
- Alloy Cable Port Sticker Black
- Carbon Fork Front Thru Axle - 120mm
- Carbon Setback Seatpost 27.2mm - 350mm
- CenterLine XR CL Rotor 160mm
- Centre Lock Rotor Lockring
- Chainstay Protector
- Compression Bushing Fits Stealth-a-Majig System AL
- DUB BSA 68mm Road WIDE Bottom Bracket
- Disc Caliper Bolt Black 32mm
- EP Powerpack 1 Battery
- Embossed Black Bar Tape
- Flat Washer SS (A4) 1mm x M5 x 10mm Silver
- Force 1 D2 DUB Wide Crankset 165mm 40T
- Force AXS D2 Shift Lever & Caliper LH
- Force AXS D2 Shift Lever & Caliper RH
- Force E1 Flattop 12/13spd Chain 120 Links
- Force XPLR AXS D2 Rear Derailleur
- Frame Badge Union Flag Blue & Red
- Gravel Ti Carbon Fork
- Gravel Ti V2 Frame XXS 44cm
- Head Badge Chrome
- M5 10mm Hex 3 Domehead P0.8 SSA2
- M5 12mm Hex 4 Tapered Head P0.8 W/Washer Black
- M5 15mm Hex 3 Domehead P0.8 SSA2
- M5 8mm Hex 4 Tapered Head P0.8 W/Washer Black
- MY25 Ti UDH Rear Thru Axle
- Needle Insert Fits Stealth-a-Majig System SS
- Rubber Circular Bung - 10mm Domehead 7mm Post
- Universal Derailleur Hanger
- Warning sticker sheet Torques to be applied at PDI
- XG 1271 D1 XPLR Cassette XDR 10-44T
Wheelset
- Cinturato Gravel RC Tyre Classic Tan 700x40mm
- Cosmic S 42 Disc Front Wheel 700c CL
- Cosmic S 42 Disc Rear Wheel 700c CL HG
- Extension For Presta Valve 40mm Pair
- Tour 28 Inner Tube 700x32-47mm - 42mm Presta Valve
- XD-R Freehub Body For ID360
Handlebar
- Alloy Gravel Riser Bar Black 38cm - 47cm
- Alloy Headset Spacer Black 10mm
- Expander For Carb Steerer 1-1/8 x 65mm (Regular)
- Level 44 Headset
Saddle
- Novus Boost EVO Superflow Saddle
